Product Details
  • Distinctions


V31

20 / 30km (2w)releases


V31PRO

5 / 50 (5w)releases




V31pro Digital Network Mapping is a powerful device with features and functions such as 3-in-1 digital mapping, multi-band selection, transparent transmission and transparent data transmission. It can efficiently transmit images and data to meet users' needs in different application scenarios. Whether in the field of image transmission, network communication or data interaction, the V31pro Digital Network Mapper provides a reliable and high-performance solution.
The V31pro Digital Network Mapper integrates three functions including image transmission, network protocol compatibility and transparent data transmission. This design makes the device more efficient and convenient when transmitting images and data. The Transparent Transmission feature is supported to transmit images and is compatible with all network protocols. This means users can seamlessly transfer images to the target device or system without worrying about protocol compatibility. Transparent transmission ensures high-quality image transmission and reception.
It also supports the transparent data transfer function and provides a TTL/RS232 level interface. This allows users to transfer data through the device and interact with data from other devices or systems. Support for the TTL/RS232 level interface increases the flexibility and compatibility of the device.
V31pro provides two frequency band options, 800MHz and 1.4GHz, so users can choose the appropriate band according to their actual needs. Such multi-band selection can adapt to different environments and application scenarios, providing better transmission performance and stability.
The dual S-BUS inputs and outputs of the V31pro Digital Network Mapper and the RC extended range function provide users with the ability to control remotely over longer distances, helping users to get rid of the limitations of insufficient distance of traditional remote control. Whether it is in the field of aerial photography, search and rescue, inspection and monitoring, V31pro digital network mapper can provide reliable and efficient remote control solutions.

Product Parameters


Item

Parameters

Description

Overall weight

175g

Exclude antennas

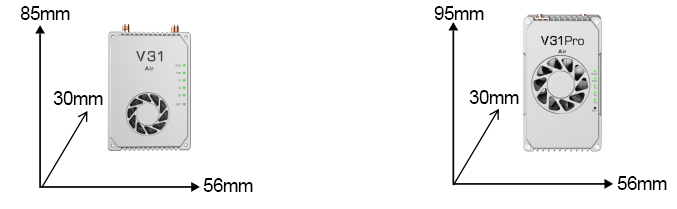

Overall dimension

95mm*56mm*30mm

NA

Working frequency

800MHz(806-826MHz)

1.4GHz(1427.9-1467.9MHz)

1.4G(standard)

Power supply voltage

DC 12-50V

3-12S battery

Power supply current

2-2.5A

24V power supply

Serial port

TTL

RS232(optional)

Data port

SBUS *2,LAN*1

NA

RF power

-40~37dBM

NA

Antenna

2-4dBi rod antenna

8-12dBi fiberglassantenna

Operating temperature

-30°C~+50°C

Video latency

<300ms

Transmission range

V31proD05: 5km grade(ground to ground)

V31proD50: 50km grade(air to ground)

Bandwidth

1.4-20M    1.4M/3M/5M/10M/20Msettable

Video input'output

LAN       Connecting IPC device/PC


Power supply portXT30


Instruction manual download
V31 Series Video&Data&RC Link User Manual.pdf
1.5MB
V31 pro Automatic Tracking System User Manual V1.0.2.pdf
714.5KB
Software Download
Firmware Upgrade Software.zip
45.4MB
Firmware Download
V31proTX_V1.2_HW_1.0_SW_1.1.0.bin
25.9KB
V31proRX_V1.2_HW_2.0_SW_1.2.0.bin
28.3KB
V31proSX_V1.2_HW_2.0_SW_1.1.0.bin
25.8KB
