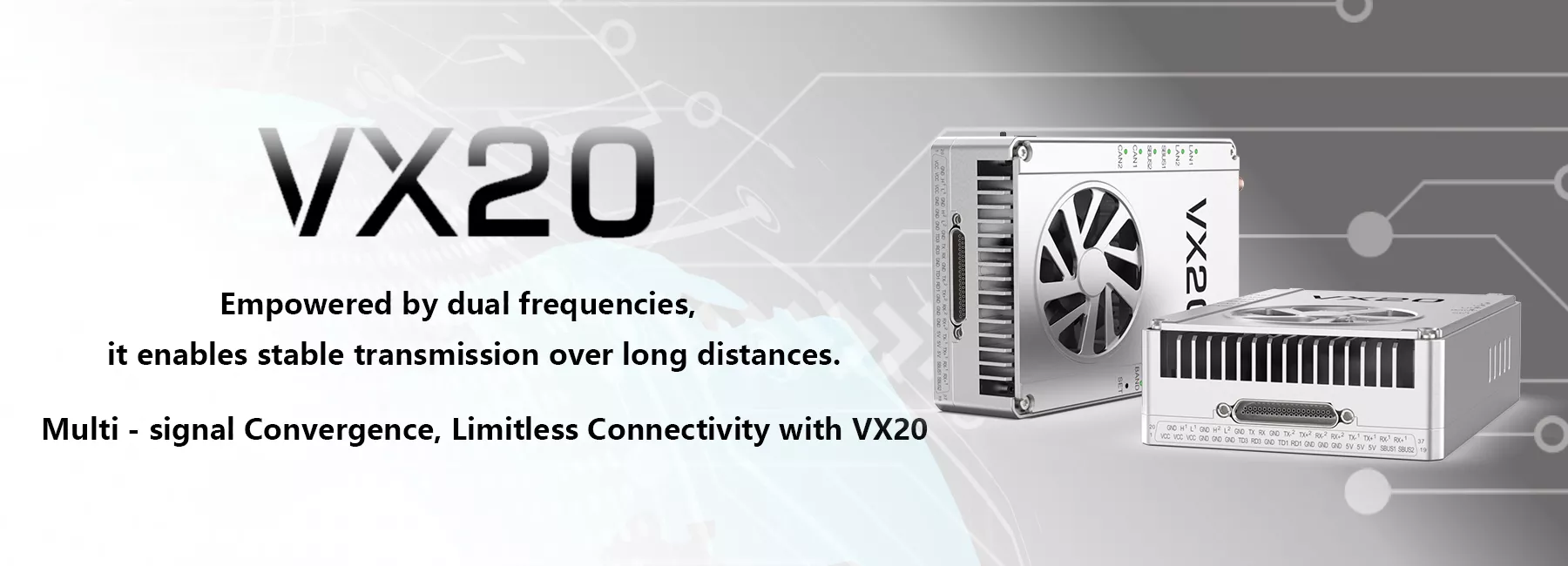

VX20
Single point up to 150km Transmission rate 100Mdps version
The VX20 digital transmission device leads the wireless communication revolution, based on the LTE wireless communication standard, and integrates OFDM and MIMO technologies to build high-performance wireless digital links. Its design integrates 4K video, data, and remote control (RC) transmission, providing stable and reliable technical support for industrial applications.
At the functional level, VX20 is equipped with 10/100 Ethernet ports, serial gateways, and supports 100Mbps stable bitrate streams to achieve reliable wireless Ethernet bridging and gateway services. The LAN interface compatible with all network protocols, combined with the serial port with adjustable baud rate (1 TTL + 2 RS232), provides strong support for multi-device interconnection.
In terms of transmission capability, VX20 makes a breakthrough in realizing the "three-in-one" transmission of remote control signals, data transmission signals, and image signals, solving the problems of limited transmission distance and low image quality of traditional equipment. Even in the face of long-distance control and signal occlusion scenarios, it can still ensure the stable transmission of data and high-definition images.
The product design takes into account both performance and portability, compact size, high integration and high sensitivity characteristics, and can still operate stably in a wide temperature environment of -20~+65°C. The 300G lightweight design (excluding antennas) is suitable for a variety of application scenarios to ensure efficient and smooth communication.
VX20 is a highlight of the VX20, which supports 600MHz (566-678MHz) and 1.4GHz (1428-1530MHz) bands to meet the needs of different scenarios. From 150 kilometers of long-distance transmission from ground to air to multi-device cooperation, the VX20 defines a new benchmark for wireless transmission with its technical strength.
VX20 Product Parameters
| Item | Parameters | Details |
| Overall weight | 300g | Exclude antennas |
| Overall dimension | 115mm*79.2mm*32mm | NA |
Working frequency | 600MHz(566-678MHz) 1.4GHz(1420-1530MHz) | 1.4G(standard) |
| Power supply voltage | DC 12-50V | 3-12S battery |
| Power supply current | 1300mA | 24V power supply |
| Serial port | 1 TTL/2 RS232 | Optional |
| Data port | SBUS*2,CAN*2 | NA |
| RF power | 5W*2 | NA |
| Antenna | 2-4dBi rod antenna | 8-12dBi fiberglass antenna(optional) |
| Operating temperature | -20~+65℃ | NA |
| Video latency | <300ms | NA |
| Transmission range | VX20D10:10km(ground to ground） VX20D20:20km(air to ground） VX20D50:50km(air to ground） VX20D150:150km(air to ground） | LOS/point to point |
| Bandwidth | 1.4/3/5/10/20/40MHz | NA |
| MIMO mode | 2x2MIMO | NA |
| Network mode | 64 devices maximum | NA |
| Power supply port | J30J | NA |
