Product details
- Distinctions
M2
MESH up to 100km Transmission rate 100Mdps version
VX20
Single point up to 150km Transmission rate 100Mdps version

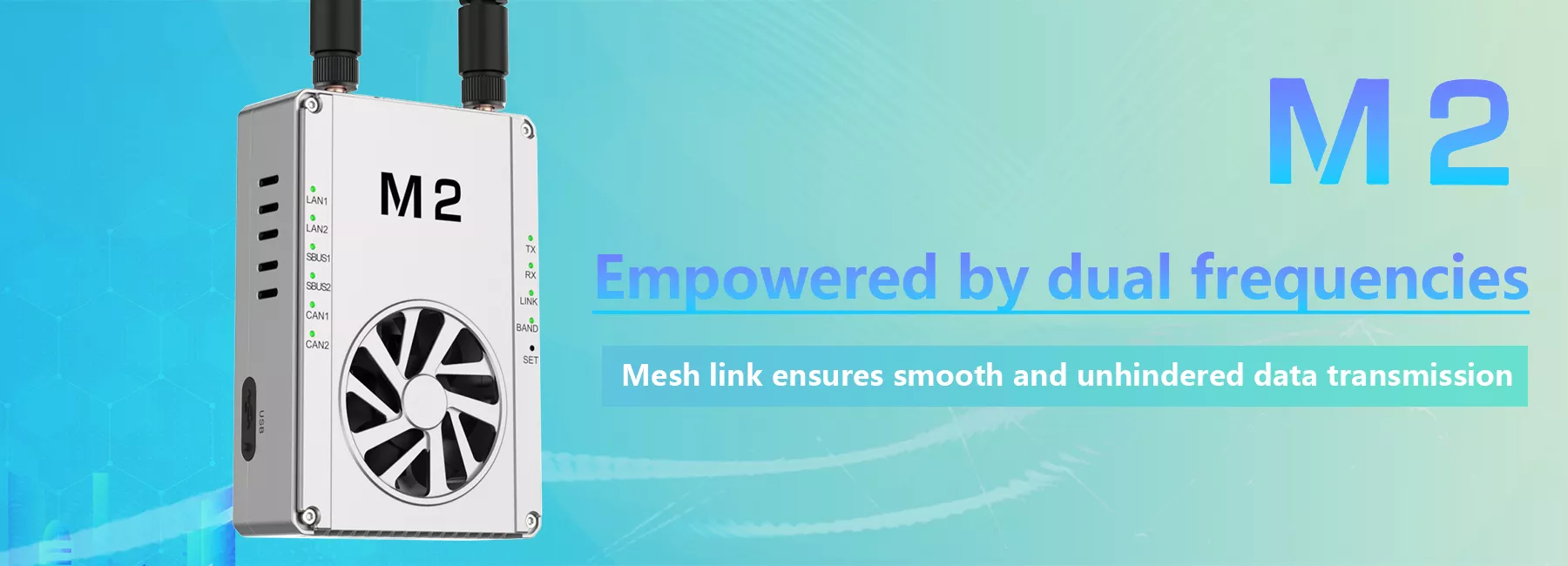

M2 is a broadband data transmission product that supports MESH networking, and is at the forefront of wireless communication. With the LTE wireless communication standard, it has made a name for itself in the market with outstanding performance.
The M2's strength stems from advanced technology. With the help of OFDM and MIMO technology, an efficient wireless digital data link is built to bring stable and fast data transmission. When CA mode is on, it provides a reliable wireless Ethernet bridge to facilitate communication between a wide range of devices.
It also features 10/100 Ethernet and serial gateway capabilities that act as a wireless Ethernet bridge, providing a convenient gateway service for a wide range of devices and making it easier to connect.
M2 has a wide range of application scenarios, integrating 4K video, data and remote control transmission, solving the problems of limited remote control transmission distance and poor image transmission quality of traditional products, and meeting a variety of needs.
Not only is the M2 powerful, but it is also designed to be compact and highly integrated, with 600MHz and 1.4GHz frequency bands to choose from, making it adaptable and can play an important role in many areas
M2 Product Parameters
| Item | Parameters | Details |
| Overall weight | 300g | Exclude antennas |
| Overall dimension | 115mm*79.2mm*32mm | NA |
Working frequency | 600MHz(566-678MHz) 1.4GHz(1420-1530MHz) | 1.4G(standard) |
| Power supply voltage | DC 12-50V | 3-12S battery |
| Power supply current | 1300mA | 24V power supply |
| Serial port | 1 TTL/2 RS232 | Optional |
| Data port | SBUS*2,CAN*2 | NA |
| RF power | 5W*2 | NA |
| Antenna | 2-4dBi rod antenna | 8-12dBi fiberglass antenna(optional) |
| Operating temperature | -20~+65℃ | NA |
| Video latency | <300ms | NA |
| Transmission range | M2D05:5km(ground to ground） M2D50:50km(air to ground） M2D80:80km(air to ground） M2D100:100km(air to ground） | LOS/point to point |
| Bandwidth | 1.4/3/5/10/20/40MHz | NA |
| MIMO mode | 2x2MIMO | NA |
| Network mode | 32 devices maximum | NA |
| Power supply port | J30J | NA |
