Product Details

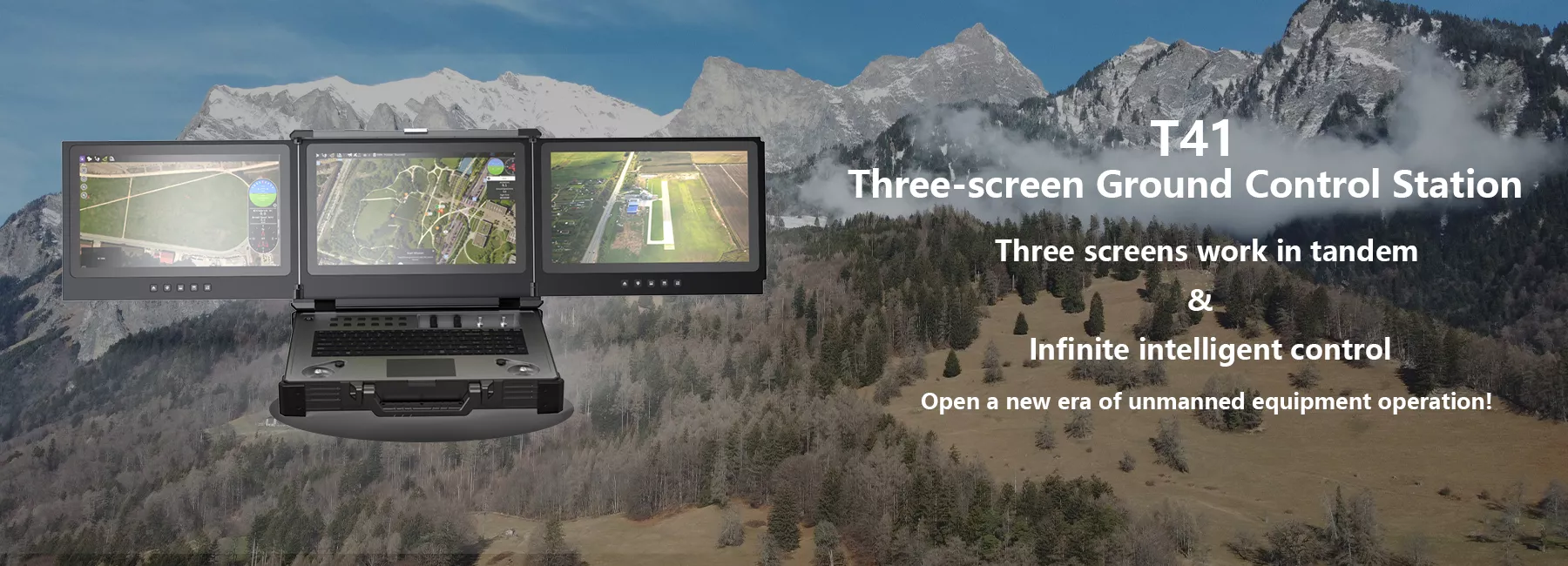

The T41 three-screen ground control station is a highly integrated industrial-grade device. It combines the functions of an image transmission system, a data transmission system, an image display system, and an industrial laptop computer. With an aviation aluminum alloy casing, it only weighs about 11 kilograms, making it lightweight and sturdy.
It is equipped with three high-resolution and high-brightness touch screens, all on the same plane, providing an excellent display effect. Moreover, it comes with an extended touchpad and a keyboard, which makes the operation convenient. Whether it's viewing real-time images or entering various commands, users can do it with ease.
Compatible with a wide range of communication links, including the V31 with a range of 150 kilometers and above, T41 offers stable and long - distance data transmission. This ensures seamless communication between the ground station and unmanned devices even in complex environments.
This ground control station has excellent connectivity. It supports most of the links in the market and also allows external HDMI video input. With rich interfaces like RS2324, USB3.02, LAN, and HDMI, it is convenient to connect to various third-party multi-functional devices.
The T41 supports external power supply and hot swapping. The battery capacity is 16.8V/25000mAh, and it can last for 3.5 hours when fully charged, which can meet the needs of long-time work and reduce the trouble caused by power issues.
As a multi-functional device, the T41 is highly integrated and suitable for various unmanned devices such as UAVs, unmanned vehicles, and robots. It provides reliable control solutions for different application scenarios, helping to complete various tasks efficiently.

The T41 ground station features an extremely flexible operation mode, supporting both "controlling multiple units with one station" and "controlling one station with multiple units". In the mode of "controlling multiple units with one station", a single ground station can simultaneously control multiple drones or other vehicles. These units can either operate independently or cooperate with each other. Under the "controlling one station with multiple units" mode, multiple drones or vehicles can be connected to a single ground station at the same time and be uniformly controlled by one operator. These two modes can adapt to diverse task requirements and team collaboration scenarios.


The T41 ground station adopts a highly integrated and all-in-one design. It is a powerful and flexibly operable ground control device. It integrates multiple functions such as image transmission, data transmission, device control, and networking. By enabling the "controlling multiple units with one station" and "controlling one station with multiple units" modes, it endows users with comprehensive control and monitoring capabilities, which are sufficient to handle various complex tasks.

T40   Product Parameters


Dimension

Overall weight

11000g

Dimension

416mm(L)*304mm(W)*96mm(H)

Screen size

15.6inch 1920*1080 1000nit (Left screen)

15.6inch 1920*1080 1000nit (Middle screen)

15.6inch 1920*1080 1000nit (Right screen)



Computer Peripherals

CPU

Intel i7 1070U(standard)

Touch pad

10-finger capacitive touch screen

Operating system

Windows10 / Linux

RAM

32G

SSD storage

1T

Network

WIFI / Bluetooth(standard) 4G(optional)

Interfaces

RS232*4, USB3.0*2, LAN, HDMI in



Remote Control

Physical channel

Main joystick*2 (industrial joysticks with hall sensors), auxiliary rocker*4, key buttons*12,three-position switch*4, knob*4, Simulate keystrokes*7

Human interface

USB HID

Remote control function

Dual SBUS independent output, able to control

the vehicle and the payload simultaneously

SBUS port

SBUS OUT*2

Remote control latency

40ms





Battery Peripherals

Battery capacity

16.8V /25000mAh

(external power source also supported)

Working time

3.5hs@full battery capacity

Charging port

DC16.8v




Communication link

V31

150km and up

The 3rd party communication link

Supported




Instruction manual download(1)
T40 Handheld GCS User Manual V.2.1.0 docx.pdf
3.5MB
T40 specification.pdf
474.7KB
Software Download(1)
BootLoader_2.0.7.zip
63.7MB
HZY Remote-controller configuration software installer 1.5.0.zip
65.0MB
Firmware Download(1)
TTx40_HW_4.0_SW_2.1.8.bin
56.5KB
