CHINOWING-X58

Product details

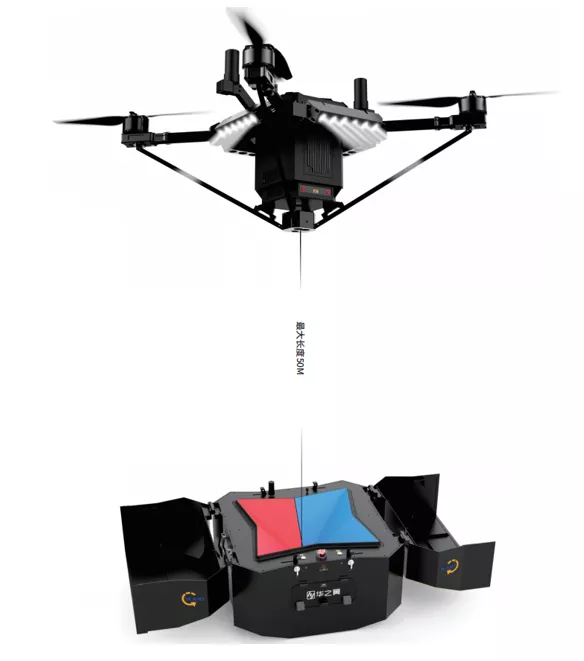

The X58 high altitude lighting platform utilizes UAV technology to carry lighting equipment while being tethered to a ground power supply. This setup allows for extended lighting durations and coverage over a wide area. The light set boasts a maximum power of 720W, providing a brightness of up to 108,000lm. The platform operates with a 4000W generator, ensuring stable performance for 8 hours, effectively illuminating an area of 6,500 square meters.

In the UAV field, weight is a critical factor, and as such, we have devoted significant time and effort to developing an innovative cut aluminium alloy material. Through meticulous craftsmanship and advanced material selection, we have achieved remarkable enhancements in strength and hardness while preserving its lightweight properties. This breakthrough allows us to create UAV components that strike the perfect balance between durability and weight, ensuring optimal performance and efficiency in a variety of applications. Our commitment to continuous innovation enables us to deliver cutting-edge solutions that meet the evolving needs of the UAV industry.

the drone's unique capability to change the angle of the light flexibly allows it to illuminate an impressive range, transforming from a square to a rectangle. This versatility makes it a perfect lighting solution for various scenarios, including outdoor events, performance venues, and emergency rescue operations. The drone light provides a novel lighting experience, bringing exceptional illumination and enhancing the visual impact of any setting. Its agility and adaptability make it an outstanding addition to any lighting setup, offering unparalleled possibilities for creative lighting solutions and ensuring optimal visibility in different situations.

The RTK Visual Positioning technology is revolutionizing drone operations, especially in challenging conditions like pitch-black darkness. The innovative drone landing funnel design, coupled with cutting-edge visual positioning capabilities, is a game-changer. This technology empowers drones to achieve centimeter-level positioning accuracy, enabling precise landings even in complete darkness.

The funnel design incorporates an advanced visual positioning system that includes a highly sensitive camera and robust image processing algorithms. As the drone follows the landing funnel, the camera captures ground markers or specific patterns, allowing the algorithm to calculate the drone's relative position to the target with remarkable precision.

The CHINOWING x58 boasts precision-sealed key ports and connections, providing reliable protection against rainwater infiltration. This meticulous sealing ensures that no moisture can penetrate the drone's interior, safeguarding its sensitive components and electronics from water damage. Whether it's the charging interface, LED light interface, or other sensor interfaces, all crucial connections are tightly protected to maintain the drone's optimal performance and functionality.

Item	Parameters
Rated input voltage	200~240VAC
Lighting power	720W
Illuminating brightness	108000Lm
Overall power	4KW
Generator effective power	4KW
Aircraft maximum power	3KW
Maximum flight altitude	50m
Takeoff weight	3.8Kg
Aircraft backup battery capacity	2000mAh
Aircraft back up battery life	4 minutes@ full power; 3 minutes@60% power
Maximum lighting area	6500㎡
Waterproof level(aircraft)	IPX3(Rainproof type, rainfall within 60 degrees from the vertical direction has no harmful effect)
Waterproof level(base station)	IPX3(Rainproof type, rainfall within 60 degrees from the vertical direction has no harmful effect)
Aircraft RTK accuracy	≤10CM
Aircraft landing accuracy	≤8CM
Power supply voltage in base station (DC)	400V
Motor	4216KV370
Propeller	1652(16”paddle blade)
Propeller wheelbase	610mm
Remote control effective control distance	1km (point-to-point, LOS condition)
Aircraft working time	Not less than 8 hours
Overall dimension (mm)	605577518
Net weight(kg)	26.8kg(aircraft 3.8Kg; base station22.4Kg)
Wind resistance	Level 3 (6m/s)
Rain resistance	Light rain (rain can make the ground wet but not muddy, moderate rain level to be tested)
Features	Four groups of rotatable lamp (the maximum adjustable angle is 45 °)No need to disassemble the smart BMS batteryHand pull 180 ° rotary double doorsOne tap visual precision landing
