T50 DUAL-SCREEN GCS

Product Details

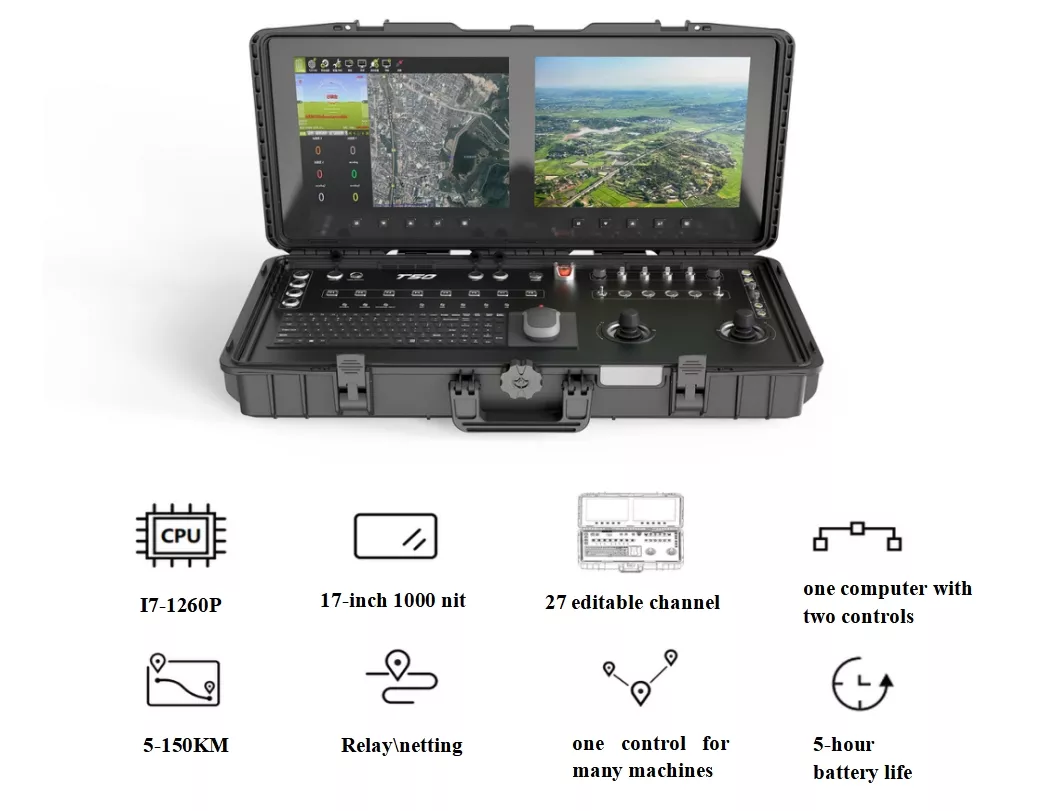

The T50 dual-screen ground station has dual 17-inch HD touchscreens with 1000 NIT brightness. It features an Intel i7 12-core CPU, 32GB RAM, and 1TB SSD for smooth performance. With 27 channels and dual three-axis joysticks, it offers customizable settings. The data link range is 10-150km and supports third-party integration for various unmanned devices. Its sleek, screwless design includes waterproof interfaces and a large battery for extended operation.

Product Specification

■

1、 Display menu key (display setup menu)

2 、Display brightness minus (for brightness adjustment and menu down selection)

3 、Screen brightness plus (for brightness adjustment and menu up selection)

4 、Return button (for on-screen menu return)

5 、Display switch (for switching the corresponding display on and off)

6、 Thunderbolt 4 connector (supports full-featured Type-C)

7、 RJ45 ports (3 100 Mbps)

8、 HDMI OUT/IN (key switch) (input acts on the secondary screen (right side))

9、 HDMI signal switching button (press for input, rebound for output)

10、 USB port (USB3.0 port)

11、 Power button and indicator (for switching on/off)

12、 Customized emergency stop switch (for emergency stopping the device)

13、 Knob (corresponds to LD)

14、 Three-position switch with light (corresponding to SA, SB, SC, SD)

15、 Knob (corresponds to RD)

16、 Button (corresponds to F1-F8 8 buttons)

17、 Second gear switch with light (corresponds to SE)

18、 Self-locking button (corresponding to F9-F12 4 buttons)

19、 Second gear switch with light (corresponds to SF)

20、 Battery charging port (4Pin aviation plug, DC 25.2V input)

21、 External power supply port (2Pin aviation plug, DC 24V input)

22-23、 TNC antenna port (A1 is main antenna, A2 is secondary antenna)

24、 6pin aerial connector (SUBS OUT*2,RS232*1)

25、 4Pin connector (Network LAN port)

26、 Computer operation area (keyboard, mouse pad) 27、 Power indicator (power >50%, always on; power <50%, blinking) 28、 Charging indicator (when charging, always on) 29、 External power indicator (when connecting to external power, always on) 30-32、 Wireless link indicator (indicates signal strength, no connection for running water light) 33-34、 Wireless link transmitting indicator (with data transmitting TX is on, with data receiving RX is on) 35、 Three-axis retractable rocker (corresponding to T1, T2, T3, T4, T5, T6 channels) 36、 External SBUS input (corresponds to SBUS2) 37、 USB port (USB 2.0 port) 38、 Program burning port (for internal staff to modify the program) 39、 XT60 battery power supply port (internal battery power supply port)

Features

Robust Computing Power

Equipped with an INTEL i7 1260PCPU, ensuring exceptionalprocessing power and multitaskingcapabilities

Precise Control

Features retractable three-axis joystick with hall-effect, providing a precise control experience.

Highly Integrated System

R&D totally in-house, our components stand out from the simple connections of off-the- shelf parts used by other manufacturers, ensuring superior compatibility and reliability

Precision Switch

Multi-segment switches with freely definable attributes

Innovative Damping Design

Breaks away from traditional

support rod solutions, it delivers

a more stable support structure.

Enhanced Security

Increased security with protective caps on buttons, improving device safety and

resistance to damage.

Multifunctional Keyboard

Keyboard can be with a mouse for

additional control options, enhancing

user convenience.

Multi-Interface Design

Device supports multiple interfaces, allowing easy adaptation to our video links and third-party devices, expanding device applicability.

T50 Product Parameters

Dimension
Overall weight	20 Kg （Battery included 2.8kg）
Dimension	850mm(L)425mm(W)160mm(H)
Screen size	17 inch 12801024 1000nit2 (bottom screen)

Computer Peripherals
CPU	Intel i7 1260P (standard)
Touch pad	10-finger capacitive touch screen
Operating system	Windows11 / Linux
RAM	32G (standard)
SSD storage	1T (standard) \ 2T
Network	WIFI/Bluetooth(standard) 4G(optional)
Interfaces	HDMI in \ USB3.0 \ LAN \ Type-c

Remote Control
Physical channel	27
Human interface	USB HID
Remote control function	Dual SBUS independent output, able to control the vehicle and the payload simultaneously
SBUS port	SBUS IN1; SBUS OUT2
Remote control latency	40ms
IP rating	IP53(in open status) IP65(in closed status)

Battery Peripherals
Battery capacity	DC 25.2V/30000mAh (external power source also supported)
Working time	5 hs@full battery capacity
Charging port	DC 25.2v
Charging port	-20 ~ 60 ℃

Communication link
V21/V31	5-150km grade video&telemetry&RC link
The 3rd party communication link	Supported
