Product Details
- Distinctions
VM21
MESH single hop up to 10km
VM31
MESH single hop up to 15km

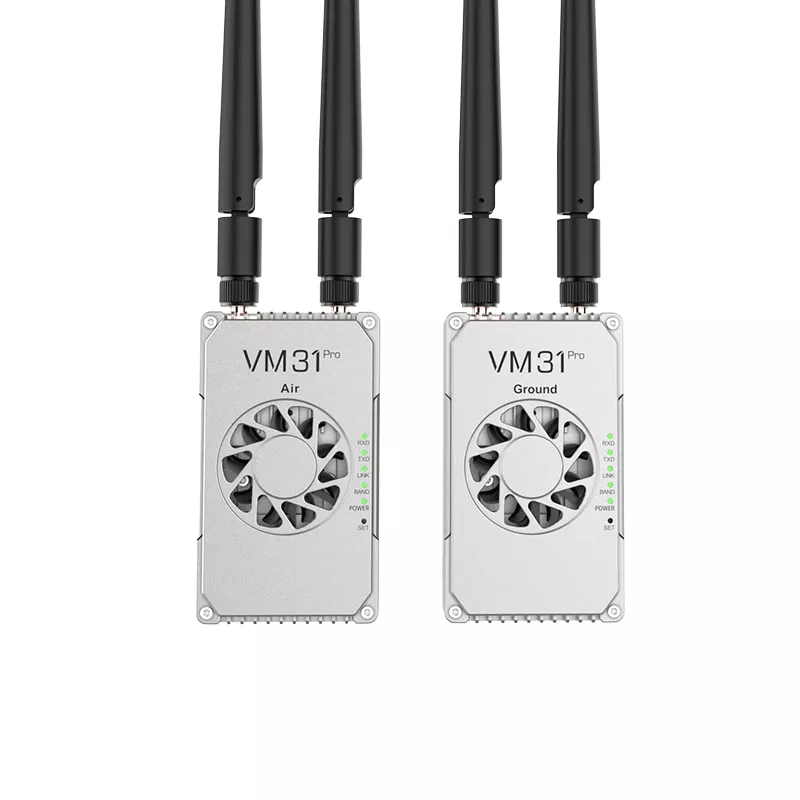

VM31pro
MESH single hop up to 50km
When MESH networking technology is applied to the field of UAVs, it has a series of groundbreaking effects. Firstly, MESH networking can extend the coverage of UAV networks, enabling UAVs to communicate and collaborate over a larger area. Secondly, MESH networking is self-organising and self-adaptive, enabling the establishment of stable communication links between UAVs and the automatic re-routing of data transmission paths in the event of interference or disruption.
UAVs usually need to communicate with ground stations or other UAVs to transmit control commands, sensor data, and so on. Using MESH networking technology, UAVs can act as nodes in the network, and by establishing connections with other UAVs or ground stations, they can achieve a larger network coverage and extend the communication distance and area.
MESH networking enables UAVs to self-organise and adapt to the network topology. When the connection between UAVs is interrupted or signal interference occurs, MESH networking can automatically re-route the data transmission path to maintain communication stability. This adaptive capability makes the UAV network more robust in complex environments.
MESH networking allows drones to transmit data over multiple paths, thereby increasing the reliability and robustness of data transmission. If one path is disturbed or interrupted, the drone can continue transmitting data through other available paths. This is important for critical applications such as real-time video transmission, sensor data collection and monitoring.
MESH networking makes the UAV network scalable and flexible. New UAVs can be easily added to an existing MESH network without reconfiguring the entire network structure. This is valuable for applications where mission requirements change frequently or where flexible deployment is required.
Product Parameters
Item | Parameters | Description |
Overall weight | 175g | Exclude antennas |
Overall dimension | 95mm*56mm*30mm | NA |
Working frequency | 800MHz(806-826MHz) 1.4GHz(1427.9-1467.9MHz) | 1.4G(standard) |
Power supply voltage | DC 12-50V | 3-12S battery |
Power supply current | 2-2.5A | 24V power supply |
Serial port | TTL | RS232(optional) |
Data port | SBUS *2,LAN*1 | NA |
RF power | -40~37dBM | NA |
| Antenna | 2-4dBi rod antenna | 8-12dBi fiberglassantenna |
Operating temperature | -30°C~+50°C | |
Video latency | <300ms | |
Transmission range | 50km grade(air to ground) LOS/point to point | |
Bandwidth | 1.4-20M 1.4M/3M/5M/10M/20Msettable | |
| Video input'output | LAN Connecting IPC device/PC | |
| Power supply port | XT30 | |
